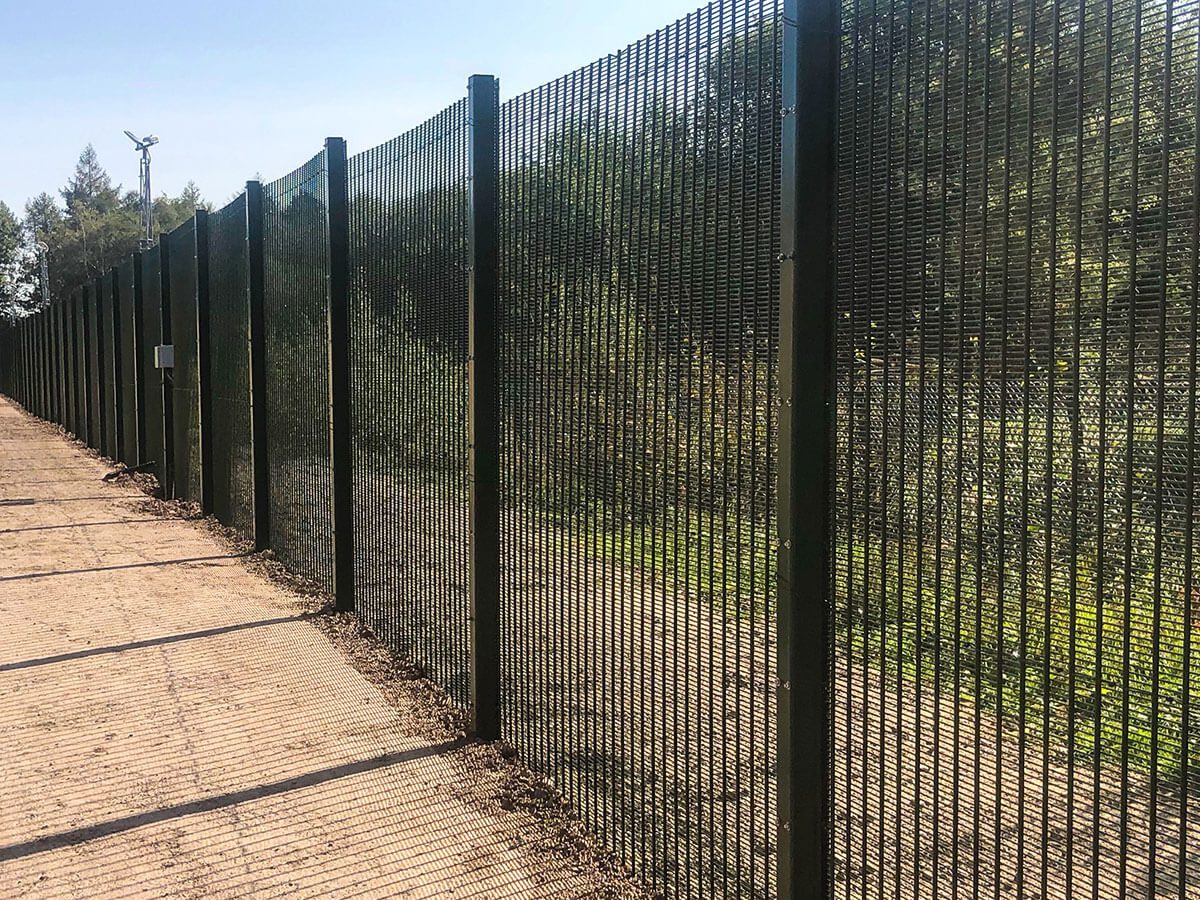

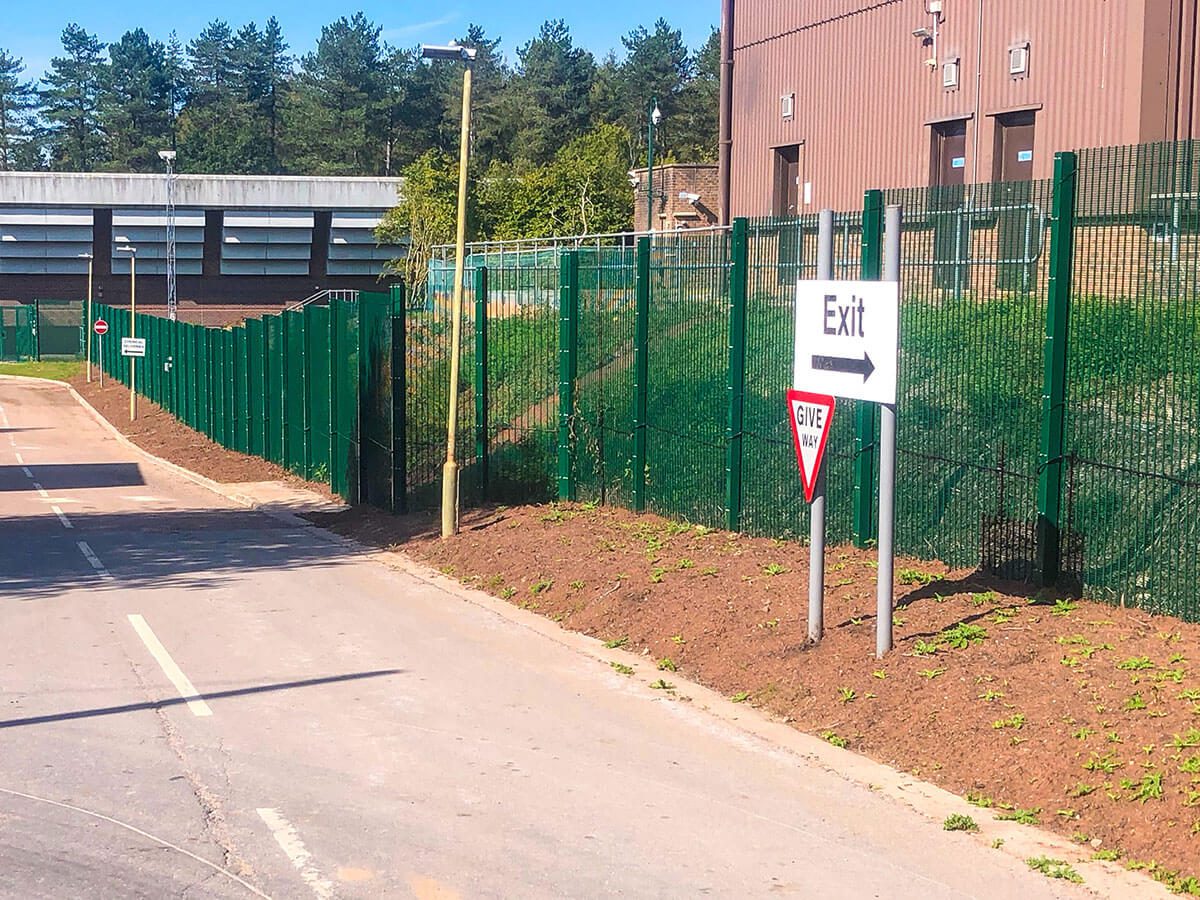

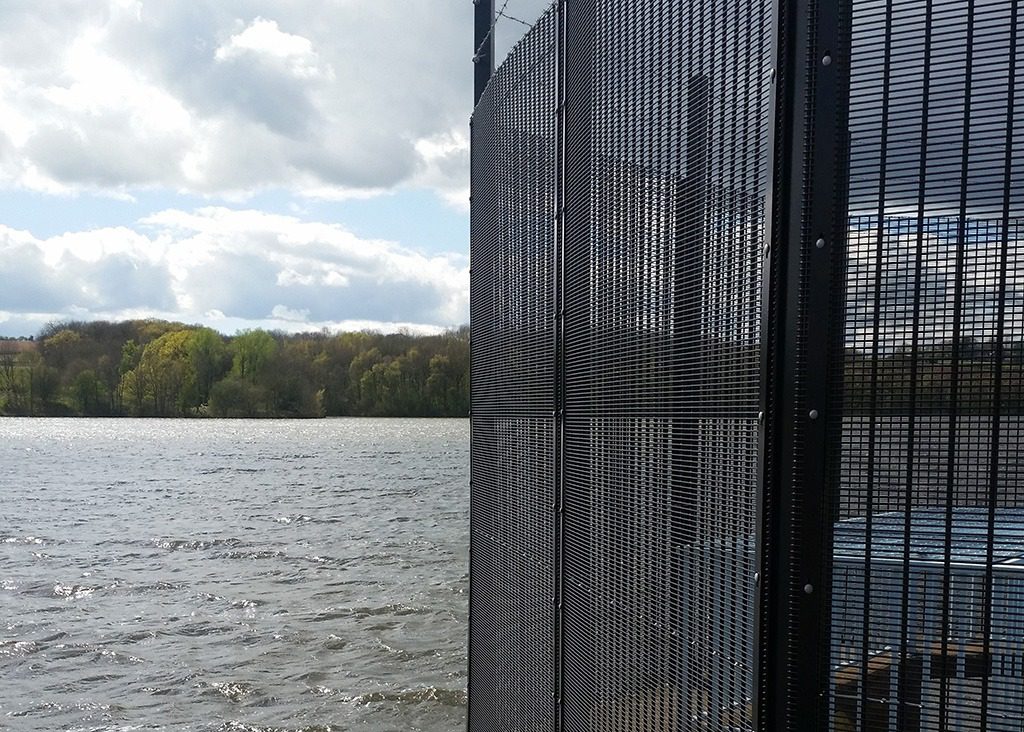

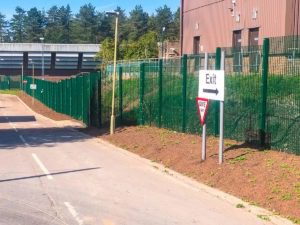

HiSec SR2 Rated Fencing (B3 Rated Fencing under Issue 8) has been developed by Zaun in consultation with the Home Office as our premier high-security system. Aimed at high profile and sensitive sites requiring the greatest perimeter protection.

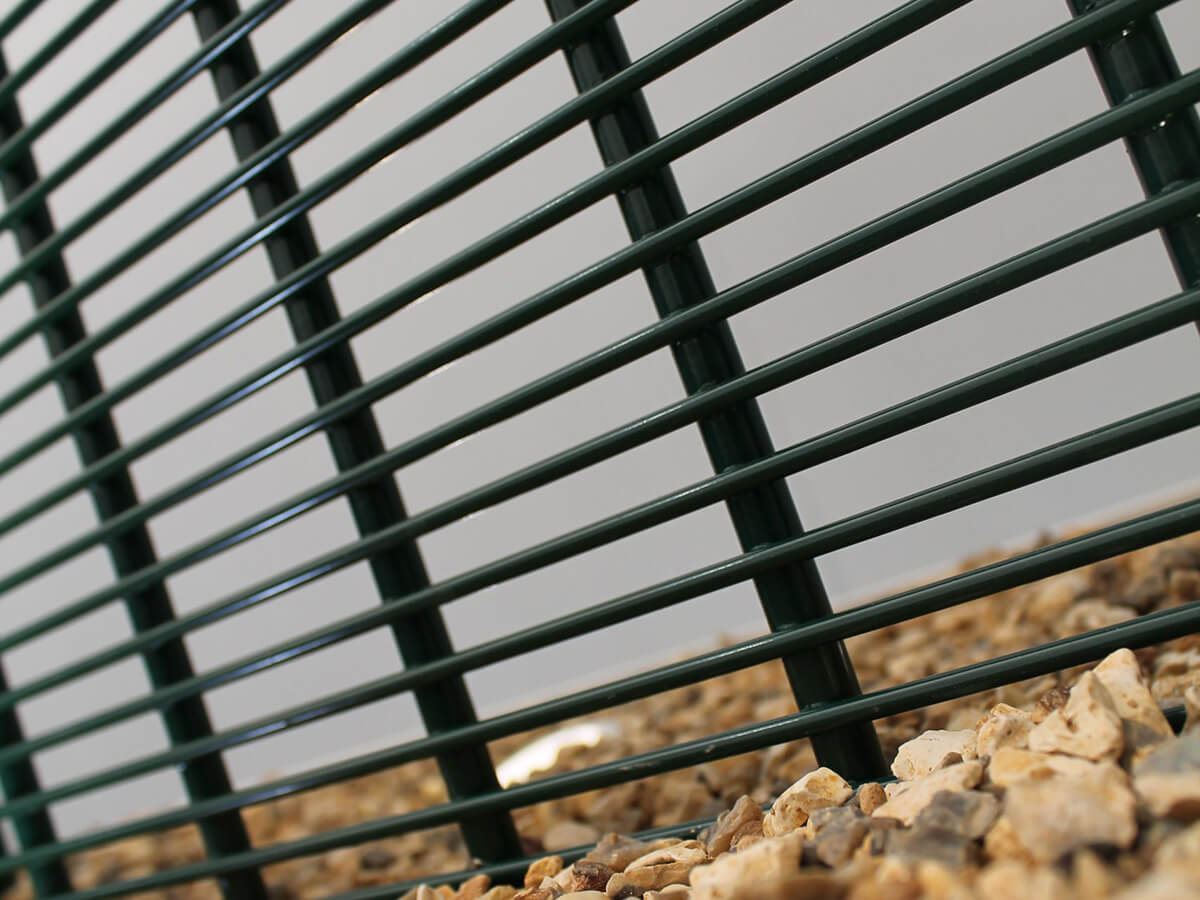

The HiSec SR2 Rated Fencing solution is based on the original 358 HiSec system but is even stronger. HiSec SR2 is manufactured with 4mm horizontal wires and 10mm diameter vertical wires with 76.2mm spacings, providing a strong barrier to anyone trying to gain unauthorised access to a site.
The SR2 rated fencing system has also achieved Secured by Design accreditation from the Association of Chief Police Officers and Security Rating certification to LPS1175 and entry into the Red Book from the Buildings Research Establishment (BRE), achieving the security rating B3 under issue 8 (SR2 under issue 7).

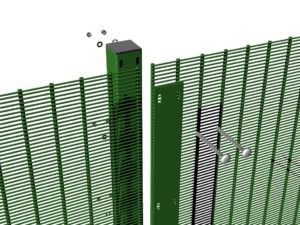

HiSec SR2 uses the RHS post configuration with a full-length clamp bar and stainless steel through bolts, washers and nuts to leave no weakness in the fence line. Slotted fixing holes ensure the installation is easy and leaves a neat, flush fitting.
Despite all this, HiSec SR2 presents a value solution that negates the need for a double skin 358 system or any additional clamp bars or fixings that you wouldn’t expect in a standard mesh fencing system. Additionally, this keeps installation costs down to a minimum.
HiSec SR2 can also be used with a range of fence toppings and integrated solutions to provide a full turnkey high-security solution. Pedestrian and vehicle gates are also available to match the fence line.
Finish
All Zaun posts/panels/gates and painted auxiliary components (for example, clamp-bars, slide bolts etc.) benefit from a protective zinc layer and electrostatically applied polyester powder coating to BS1722 p16. Care is taken with pre-treatment to ensure sound adhesion between the zinc and paint layers. In a UK C1 environment, as defined in ISO 12944 p2, this should provide a useful life expectancy of the fence of at least 15-20 years. Life expectancy in all environments can be extended by maintaining the fencing with regular washing. Useful life will be reduced if the fencing is damaged. Any coating damage should be repaired to minimise the effect on useful life.
Enhanced painting systems such as marine coatings are also available for improved life expectancy in C2-C5M environments. For a complete list of colours.
Posts & Fixings
The HiSec Super SR2 perimeter security fencing system features a post and clamp bar configuration, providing a simple and easy installation method. Supplied with stainless steel through bolts, washers and nuts and installed using either power or hand tools.
Sloping Ground
Panels can be stepped as required on the post. However, on steeper gradients, it is recommended that taller panels are either part-buried or additional posts are used. Panels can also be sloped to follow lesser gradients.
Variations

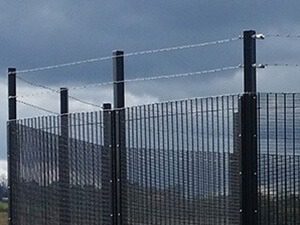

Posts are available in different lengths to accommodate panel heights and ground conditions. Additional variations are also available: Wall fixing, cranked posts or base plated, Cranked, V Shape or Top Hat extensions for barbed or razor wire, Extended posts for CCTV, electric fencing, lighting or physical security devices.

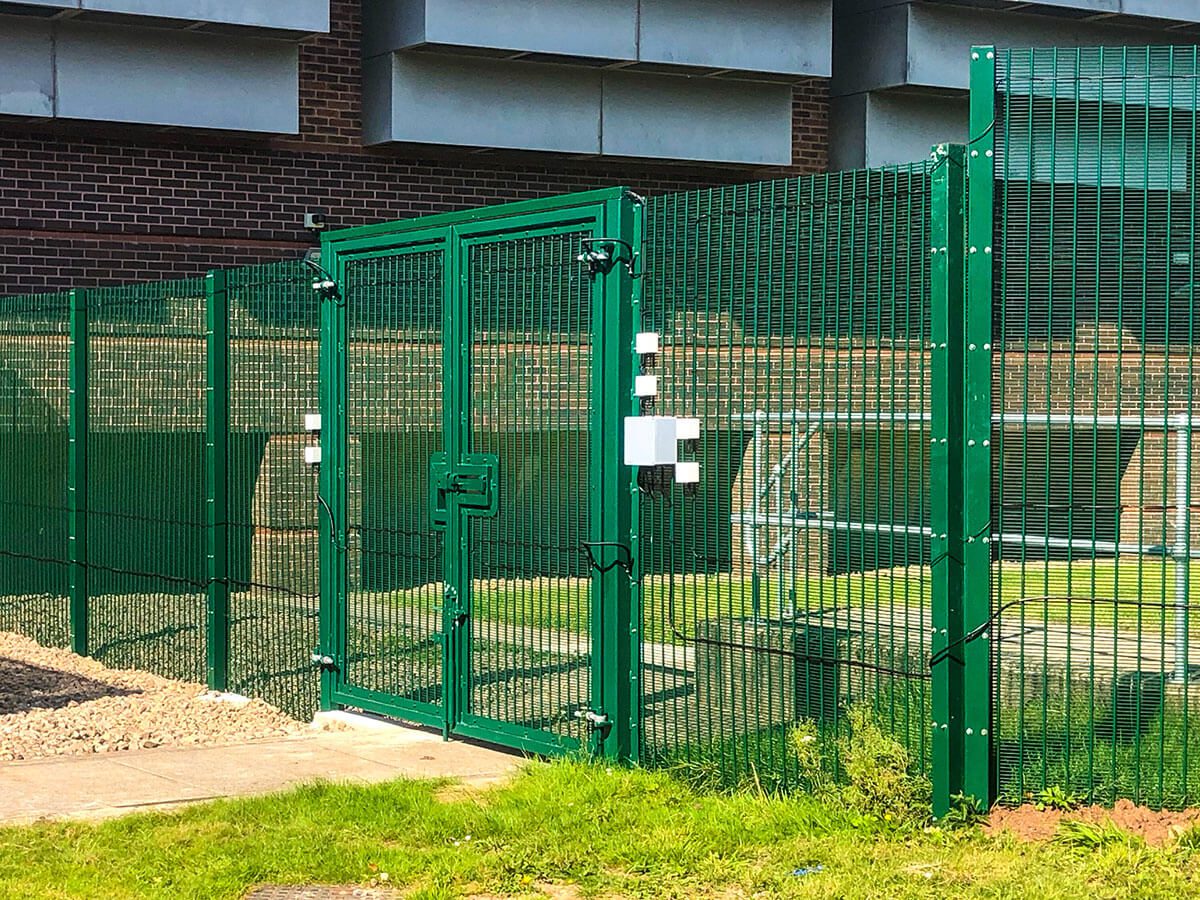

Matching SR2 / B3 Rated Security Gates

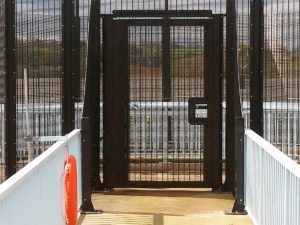

Pedestrian gates are single leaf 1.2m wide (or width to suit), framed in a 50mm x 50mm RHS with Zaun HiSec mesh clad to the front face of the gate frame, with slide latch. Gate supplied with 2 x suitable gate posts.

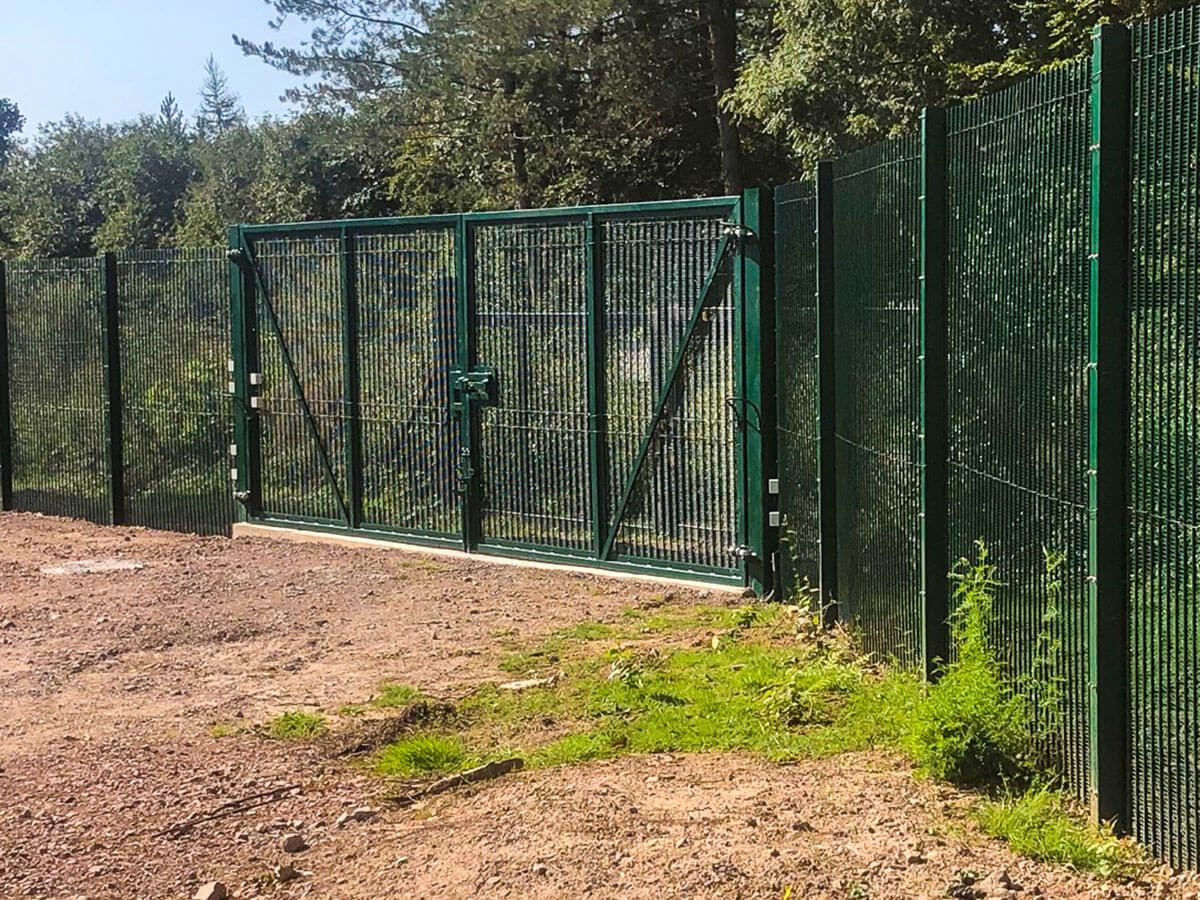

Vehicle access gates are double leaf (single leaf vehicle gates available) 3.0m wide (or width to suit), framed in 50mm x 50mm RHS, with Zaun HiSec mesh clad to the front face of the gate frame, with drop bolts and slide latch. Gate supplied with 2 x suitable gate posts.
Applications
- LPS1175 approved to Security Rating B3 and entered into the BRE RED book
- Conforms to BS1722: Part 14
- Secured By Design approved
- Provides the same protection as a double skin 358 mesh in a single panel
- The close mesh pattern offers no climbing aids
- Available either bolt down, in-ground or with on wall post options
- High visibility, ideal for CCTV camera and security
- Strong vertical wires reduce attack effectiveness
To download our HiSec SR2 datasheet, please click on the link below:
To download our Q40 specification sheet, please click on the link below;
To download our approval certificates, please click on the link below;
- HiSec LPS1175 SR2 Rated Fencing Approval Certificate.pdf
- HiSec LPS1175 SR2 Rated Gate Approval Certificate.pdf
To download our standard colour list, please click on the link below;
To download our brochures, please click on the link below;
| Height | 2438, 2997mm (Note: Additional heights available upon request) |
| Panel Width | 2515mm |
| Mesh Size | 76.2 x 12.7mm |
| Wire Tolerance | 10mm (9.88 / 10.12mm) Verticals x 4mm (3.93 / 4.07mm) Horizontals. Tolerances to BS EN 10218-2 Table 1 T1 |
| Tensile Strength | 350-650N/mm2 within range of BS-EN 10223-4 |
| Weldshear Strength | Weld shear strength 75% of tensile of wire in accordance with BS-EN 10223-4 |
| Top Edge Projection | Minimal Projections |
| Post Size | 80 x 80 |
| Clamp Bar Size | 80 x 5mm |
| Post Centres | 2530mm |
| Fixing Centres | 330mm |
| Fixings | Stainless Steel Through Bolts, Nuts and Washers |
Note: Zaun manufactures 358 from cut to length line wires; the panels are not cropped. They are supplied as standard with short protruding wires on top and bottom. If flush panels are required, this should be requested at the time of enquiry.
